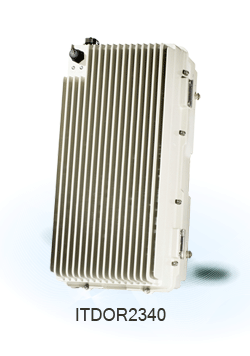

ITDOR2340



1. Overview
A Multi Band (800§Ö/1.8§×/2.1§×) optical repeater that used in large cities that has large telephone traffic and small town that the signal is weak, to expands the coverage of the base station and solve the issues with the area with weak signals.

2. Characteristics
¨ç Application of digital signal processing and
transmission system based on minimizing
transmission losses allow long distance
transmission
¨è The advantages of digital signal utilizing practical
expandability (Multi-drop, Cascade)
¨é The external battery installed prevent service
interruption due to the power outage
¨ê To protect the equipment when the antenna is
removed, an isolator is installed on active output.
¨ë When MIMO is made up, support of maximum 5
cascade is available and optic module that can
changeover  is used when there is a faulty.


3. Specification
Order Item CDMA LTE LTE
1 Frequency [MHz] FWD 1860~1870 884~894 2110~2120
RVS 1770~1780 839~849 1920~1930
2 Gain FWD 57dB 55dB 58dB
RVS 45dB 45dB 45dB
3 Input range FWD +5dBm/Total +10dBm/Total +0dBm/Total
RVS -65dBm/Total -65dBm/Total -65dBm/Total
4 Max. output FWD 44.7dBm/Path 43dBm/Path 46dBm/Path
RVS -20dBm/Path -20dBm/Path -20dBm/Path
5 Heat dissipation Natural Convection
6 Operating temperature -20¡É ~ +60¡É
7 Storage temperature -20¡É ~ +60¡É
8 Humidity 5~95% (Non-condensing)
9 SIZE(mm) 290(W) x 607(H) x 341(D)
