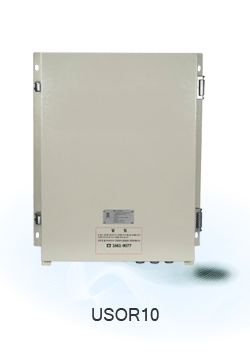

USOR1


1. Overview
An integrated optical repeater (800§Ö/1.8§×) being used to provide smooth service to the service area with weak signal of CDMA2000 1x/EVDO and LTE.

2. Characteristics
¨ç Door Open structure(Upgrade is available through module replacement)
¨è PSU & Battery are installed
¨é 10 CASCADE is available
¨ê Rotating LED Lamp is installed : improved convenience
of night work
¨ë The application of an automatic locking latch mechanism
& backing locking installation

3. Specification
Order Item Standard
1 Frequency [MHz] FWD 884~894
RVS 839~849
2 Gain FWD 52dB(2dB/65dB)
RVS 45dB(5dB/55dB)
3 Input range FWD ~ +10dBm
RVS ~ -65dBm
4 Max. output FWD 40dBm/Total
RVS -20dBm/Total
5 Heat dissipation Natural Convection
6 Operating temperature -10¡É ~ +50¡É
7 Storage temperature -20¡É ~ +60¡É
8 Humidity 5~85% (Non-condensing)
9 SIZE(mm) 450(W) x 555(H) x 100(D)
