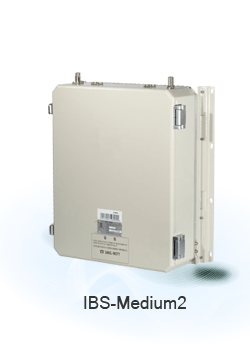

IBS-Medium2


1. Overview
  • An indoor intermediary system that amplifies signal
    using wireless RF to expand service providing
    area and to provide service to weak signal area.

2. Characteristics
¨ç A dual band repeater that support 2G(CDMA,EVDO)+4G(LTE).
¨è Highly efficient when modulating signal is amplified
due to the power amplifier with outstanding linearity
and power efficiency
¨é RF interface within a country uses wireless Air
interface connection.
¨ê Designed to have doors and warranty service is
available for Modular units.
¨ë The housing does have FAN and use natural cooling
method.

3. Standard
Order Item CDMA LTE
1 Frequency range [MHz] FWD 1860~1870 884~894
RVS 1770~1780 839~849
2 Gain FWD 65~95dB 95dB
RVS 65~95dB 95dB
3 Input range FWD +5dBm/Total -65~-30dBm
RVS -65dBm/Total -65dBm/Total
4 Max. output FWD 43dBm/Path 33dBm/Total
RVS 30dBm/Path 27dBm/Total
5 Heat dissipation Air cooling and natural convection
6 Operating temperature -10¡É ~ +50¡É -10¡É ~ +50¡É
7 Storage temperature -40¡É ~ +70¡É -40¡É ~ +70¡É
8 Humidity 5~95% (Non-condensing) 5~95% (Non-condensing)
9 SIZE(mm) SU standard 390(W) x 480(H) x 170(D)
