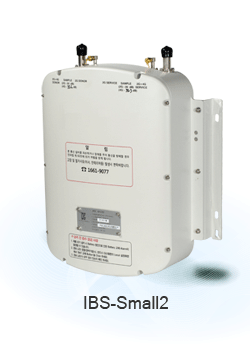

IBS-Small2


1. Overview
  • An indoor intermediary system that amplifies signal
    using wireless RF to expand service providing area
    and to provide service to weak signal area.

2. Characteristics
¨ç A dual band repeater that support 2G(CDMA,EVDO)+4G(LTE).
¨è Highly efficient when modulating signal is amplified
due to the power amplifier with outstanding linearity
and power efficiency
¨é RF interface within a country uses wireless Air
interface connection.
¨ê Designed to have doors and warranty service is
available for Modular units.
¨ë The housing does have FAN and use natural cooling
method.

3. Standard
Order Item 2G CDMA Standard 4G LTE Standard
1 Frequency range [MHz] FWD 1860~1870 884~894
RVS 1770~1780 839~849
2 Gain FWD 85dB 85dB
RVS 85dB 85dB
3 Input range FWD -65~-30dBm -65~-30dBm
RVS Max. -35dBm -65dBm/Total
4 Max. output FWD 19.7dBm/Total 19.5dBm/Total
RVS 19.7dBm/Total 19.5dBm/Total
5 Heat dissipation Air cooling and natural convection
6 Operating temperature -10~+50¡É
7 Storage temperature -40~+70¡É
8 Humidity 95%
9 SIZE(mm) 230 (W)x 320(H) x 90(D)
