Introduction

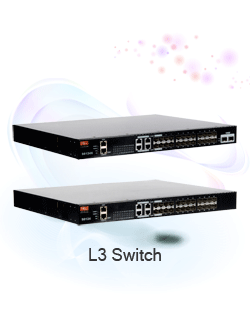

Introduction   !-RexS8124/S8124X


  • L3 switch product launched by Samji is Later 3 intelligent Ethernet switch with high performance and various functions.
1. Model

Ēš !-RexS8124 : Managed 24 100/1000BASE-FX + 4 100/1000Base-T Combo Ports L3 Switch
Ēš !-RexS8124X : Managed 24 100/1000BASE-FX + 4 100/1000Base-T Combo Ports L3 Switch with 2 10Gbe Ports

2. Performance

Ēš !-RexS8124 : Wire speed L2/L3 Switching of 35.7Mpps for 88byte packet, 48Gbps Fabric
Ēš !-RexS8124X : Wire speed L2/L3 Switching of 65.4Mpps for 88byte packet, 88Gbps Fabric

3. L2 Feature

Ēš 32K MAC Entries
Ēš IEEE 802.1D/w/s STP
Ēš Self-loop isolation
Ēš IGMP Snooping
Ēš VLANs (4K VLANs, IEEE 802.1Q/v, Q-in-Q)
Ēš Traffic Segmentation (PVLAN)
Ēš IEEE 802.3ad LACP
Ēš NTP/SNTP
Ēš Port Mirroring
Ēš SNMP/RMON
Ēš CLI (Console, Telnet, SSH)
Ēš Syslog
Ēš Auto Reboot on Hang-up
Ēš FAN control by temperature
Ēš Dual Power Supply (Hot-swappable)

4. QoS

Ēš Queue scheduling (SP, WRR, DRR) / 8 Queues per port
Ēš Multicast/Broadcast Storm control
Ēš Bandwidth control (64kbps granularity)
Ēš L2~L4 Traffic classification
Ēš CoS/DSCP marking/remarking
Ēš IEEE 802.3x Flow Control

5. L3 Feature

Ēš DHCP

  • Server (200 subnets)
  • Relay with Option 82
  • Snooping

Ēš Proxy ARP/Local Proxy ARP

Ēš IP Routing

  • 12K Entry
  • Static Routing, RIPv1/v2, OSPFv2, BGPv4

Ēš Multicast RoutingPIM-SM/PIM-SSM

6. Security

Ēš RADIUS/TACACS+ based remote access authentication
Ēš Per port accessible MAC address number limit
Ēš Ingress packet flooding control
Ēš DHCP Reply Filter
Ēš NetBIOS/NetBEUI/NBT Filter
