Introduction


Introduction !-RexS5124 !-RexQ28 !-RexQ28P !-RexQ28F !-RexG28Q !-RexS5208 !-RexS5208P

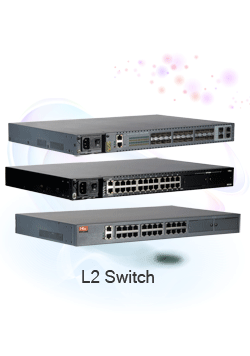

  • 삼지전자의 L2 스위치 제품은 높은 성능과 풍부한 기능의 Layer2 지능형 이더넷 스위치 입니다.

1. Model

▶ !-RexS5124 : Managed 24 10/100/1000BASE-T Ports L2 Switch with 2 Option Slots
▶ !-RexQ28 : Managed 24 10/100BASE-T Ports L2 Switch with 2 Option Slots
▶ !-RexQ28P : Managed 24 10/100BASE-T Ports L2 PoE Switch with 2 Option Slots
▶ !-RexQ28F : Managed 24 100BASE-FX Ports L2 Switch with 2 1G-SFP and 2 100/1000Base-TX Ports
▶ !-RexG28Q :
Managed 24 SFP Ports+4 1000Base-T Combo Ports L2 Switch with 2 Option slots
▶ !-RexS5208 : Managed 8 10/100/1000Base-T Ports L2 PoE Switch with 2 1G-SFP Ports
▶ !-RexS5208P : Managed 8 10/100/1000Base-T Ports L2 Switch with 2 1G-SFP Ports


2. Option Module (!-RexS5124/Q28/Q28P/G28Q)

▶ 1 Port 1Gbps SFP Module
▶ 2 Port 1Gbps SFP Module
▶ 1 Port 1000Base TX Module
▶ 2 Port 1000Base TX Module
▶ 1 Port GPON Module


3. Performance

▶ !-RexS5124 : Wire speed L2 Switching of 41.7Mpps for 64byte packet, 56Gbps Fabric
▶ !-RexQ28 : Wire speed L2 Switching of 9.5Mpps for 64byte packet, 12.8Gbps Fabric
▶ !-RexQ28P : Wire speed L2 Switching of 9.5Mpps for 64byte packet, 12.8Gbps Fabric
▶ !-RexQ28F : Wire speed L2 Switching of 9.5Mpps for 64byte packet, 12.8Gbps Fabric
▶ !-RexG28Q : Wire speed L2 Switching of 41.7Mpps for 64byte packet, 56Gbps Fabric
▶ !-RexS5208 : Wire speed L2 Switching of 15Mpps for 64byte packet, 20Gbps Fabric
▶ !-RexS5208P : Wire speed L2 Switching of 15Mpps for 64byte packet, 20Gbps Fabric


4. L2 Feature

▶ 16K MAC Entries
▶ IEEE 802.1D/w/s STP
▶ Self-loop isolation
▶ IGMP Snooping/MVR
▶ VLANs (4K VLANs, IEEE 802.1Q/v, Q-in-Q)
▶ Traffic Segmentation (PVLAN)
▶ IEEE 802.3ad LACP
▶ DHCP Relay with Option 82
▶ NTP/SNTP
▶ UTP Cable diagnostic (!-RexS5124/Q28/Q28P/S5208/S5208P)
▶ Port Mirroring
▶ RMON/SNMP
▶ CLI, Telnet, SSH
▶ Syslog
▶ IEEE 802.1x Port based Access Control
▶ Auto Reboot on Hang-up
▶ FAN control by temperature


5. Security

▶ Enhanced Access Control List
▶ Per port accessible MAC address number limit
▶ Ingress packet flooding control
▶ RADIUS/TACACS+ based remote access authentication
▶ DHCP Reply Filter
▶ NetBIOS/NetBEUI/NBT Filter


6. QoS

▶ Queue scheduling (SP, WRR, DRR) / 8 Queues per port
▶ Multicast/Broadcast Storm control
▶ Bandwidth control (64kbps granularity)
▶ L2~L4 Traffic classification
▶ CoS/DSCP marking/remarking


7. PoE

▶ Max 15.4W per Port(!-RexQ28P/S5208P)
