Introduction

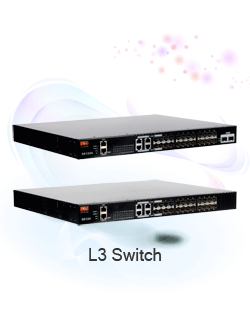

Introduction   !-RexS8124/S8124X


  • 삼지전자의 L3 스위치 제품은 높은 성능과 풍부한 기능의 Layer3 지능형 이더넷 스위치 입니다.
1. Model

▶ !-RexS8124 : Managed 24 100/1000BASE-FX + 4 100/1000Base-T Combo Ports L3 Switch
▶ !-RexS8124X : Managed 24 100/1000BASE-FX + 4 100/1000Base-T Combo Ports L3 Switch with 2 10Gbe Ports

2. Performance

▶ !-RexS8124 : Wire speed L2/L3 Switching of 35.7Mpps for 88byte packet, 48Gbps Fabric
▶ !-RexS8124X : Wire speed L2/L3 Switching of 65.4Mpps for 88byte packet, 88Gbps Fabric

3. L2 Feature

▶ 32K MAC Entries
▶ IEEE 802.1D/w/s STP
▶ Self-loop isolation
▶ IGMP Snooping
▶ VLANs (4K VLANs, IEEE 802.1Q/v, Q-in-Q)
▶ Traffic Segmentation (PVLAN)
▶ IEEE 802.3ad LACP
▶ NTP/SNTP
▶ Port Mirroring
▶ SNMP/RMON
▶ CLI (Console, Telnet, SSH)
▶ Syslog
▶ Auto Reboot on Hang-up
▶ FAN control by temperature
▶ Dual Power Supply (Hot-swappable)

4. QoS

▶ Queue scheduling (SP, WRR, DRR) / 8 Queues per port
▶ Multicast/Broadcast Storm control
▶ Bandwidth control (64kbps granularity)
▶ L2~L4 Traffic classification
▶ CoS/DSCP marking/remarking
▶ IEEE 802.3x Flow Control

5. L3 Feature

▶ DHCP

  • Server (200 subnets)
  • Relay with Option 82
  • Snooping

▶ Proxy ARP/Local Proxy ARP

▶ IP Routing

  • 12K Entry
  • Static Routing, RIPv1/v2, OSPFv2, BGPv4

▶ Multicast RoutingPIM-SM/PIM-SSM

6. Security

▶ RADIUS/TACACS+ based remote access authentication
▶ Per port accessible MAC address number limit
▶ Ingress packet flooding control
▶ DHCP Reply Filter
▶ NetBIOS/NetBEUI/NBT Filter
